Sugar Packing Machine Multi Head Versus Single Head for Your Line
Choosing between one weighing head and a multihead system affects more than speed: it changes the dosing method, operator workload, footprint, cleaning routine, and cost of every production run. By the end, you will be able to calculate the capacity you need, compare like-for-like quotations, and specify a machine that suits your sugar, pouch sizes, and working conditions.
Key takeaways
Use a single head for simpler, lower-throughput sugar packing lines.
Choose multihead weighing when target output requires faster repeated cycles.
Match the weigher to sugar crystal size, flow, dust, and sticking behaviour.
Compare the complete line, including film, sealing, labour, cleaning, and service.
How Multihead and Single-Head Sugar Lines Actually Dose and Pack
In Indore, the sugar packing machine multi head versus single head decision starts with the weighing cycle, not the advertised number of heads. A single-head net weigher feeds sugar into one load-cell hopper until it reaches the target weight.
Its gate opens, the dose drops into a formed film pouch or premade bag, and the sealing unit closes the pack.

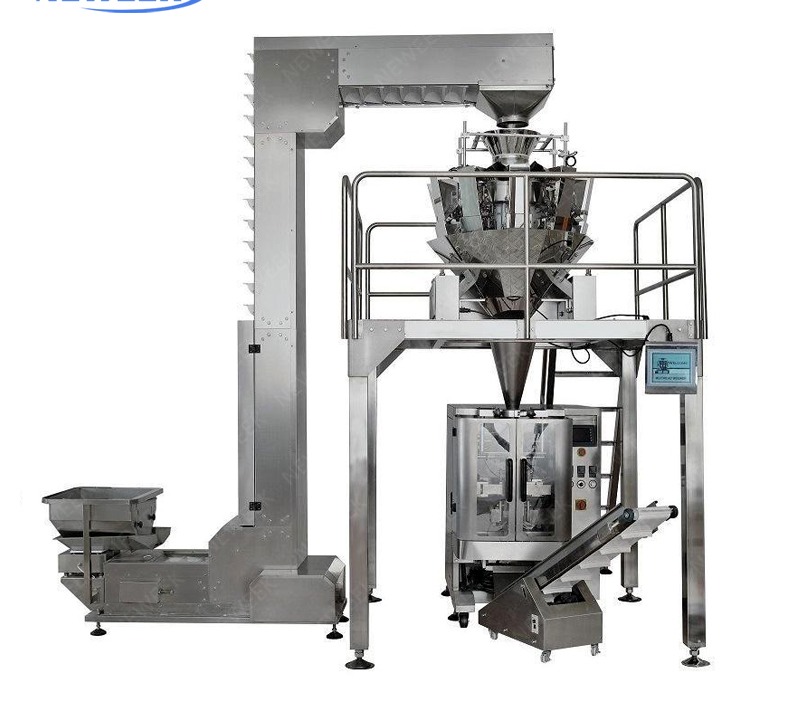

A multi head packing machine runs several weighing opportunities at once. Each hopper receives a partial amount, then the controller selects a combination whose total is closest to the target. Those selected hoppers discharge together into the pouch, after which the film former, filler tube, and sealing jaws complete the pack.
Machine One weighing and packing cycle What limits output
Single-head sugar packing machine Fill one hopper, stop at target, discharge, form or receive the pouch, then seal it Time to complete one weighment and the bagger’s sealing cycle
Multihead packing machine Part-fill several hoppers, calculate a close combination, discharge selected hoppers, then seal the pouch Hopper refill, combination timing, discharge, film movement, and sealing
Head count therefore does not equal finished packs per minute. A large target weight can require slower filling; dusty or uneven sugar can delay stable weighing, while longer seal dwell or frequent size changes stops the packing rhythm.
A multihead system can reduce giveaway, but only after its feed rates, combination settings, and discharge timing match your sugar and pouch. A single head remains sensible where lower output, simpler controls, easier fault diagnosis, or frequent weight changes matter more than peak speed.
Match the Weighing Method to Sugar Crystal Size and Flow
Free-flowing granulated sugar usually suits gravimetric multihead weighing better than auger filling. Several weigh hoppers hold partial doses, and the controller selects a combination closest to the target weight. This reduces dependence on bulk density, but only when feeding and discharge timing remain stable.
Method Best fit Accuracy risks
Multihead weighing Free-flowing granulated sugar with consistent crystals Dust, unstable feed, bridging, poor calibration, or discharge timing errors
Single-head net weighing Lower output or frequent weight changes A slow or uneven fill affects every individual weighment
Volumetric cups Sugar with stable, tightly controlled bulk density Crystal size, fines, temperature, and humidity change the volume-to-weight relationship
Auger filling Powders and difficult-flowing materials Granulated sugar can create extra agitation, dust, and density-dependent dosing
Crystal size and fines alter how tightly sugar packs, so bulk density can shift between lots. A volumetric sugar packing machine calibrated on one batch can then drift high or low on the next. Gravimetric weighing is less sensitive to that change, but perform routine zero and span checks.
Humidity makes sugar tacky and encourages clumping. Clumps bridge over an outlet, while dust can interrupt product flow and contaminate sensors or seals. Test the actual sugar grade for flowability, including bridging and refill behaviour, before choosing a multihead packing machine. Record mean weight, standard deviation, giveaway, and out-of-tolerance packs during the trial.
Choose One Head or Multiple Heads from Your Real Capacity
Calculate required good packs per hour before comparing head counts. Divide daily demand by operating hours, then allow for planned uptime and rejects: required gross rate = daily packs ÷ hours ÷ uptime ÷ (1 − reject rate).
For sugar packing machine multi head versus single head in Indore, use your actual pouch weight and film, not a supplier’s empty-machine speed.
Option Capacity fit Operating trade-off
Single-head line Lower demand, frequent weight changes, or limited budget Fewer load cells and simpler fault diagnosis, but each weighment limits cycle rate
Multi head packing machine High daily demand, longer runs, or higher packs per minute More simultaneous weighments and throughput, but higher capital cost, footprint, and setup complexity
Choose a single head when one operator can feed, monitor, and
